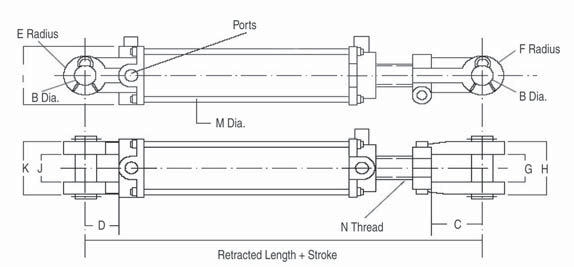

| Heavy-Duty Tie Rod Hydraulic Cylinder |
|
We specialized in designing and applying custom hydraulic cylinders in client applications. We’ve worked with hundreds of customers and have thousands of successful designs behind us. Whatever your cylinder needs may be, our experienced technical staff offers a wealth of design and application expertise. Our personnel listen to your requirements, and combine your needs with our capabilities and resources to provide the optimum solution for your specific equipment and machinery. Lead times for custom-designed products are shortened by our CAD system (AutoCad® Desk-Top 2-D and Inventor 3-D), which uses the latest design and system dynamics software. This speeds parts selection and design documentation. Complicated designs can also be evaluated in advance of the prototype stage by the use of Finite Element Analysis (FEA) with ALGOR® software. These tools also enable our adherence to the highest engineering practices, resulting in superior designs. |
|

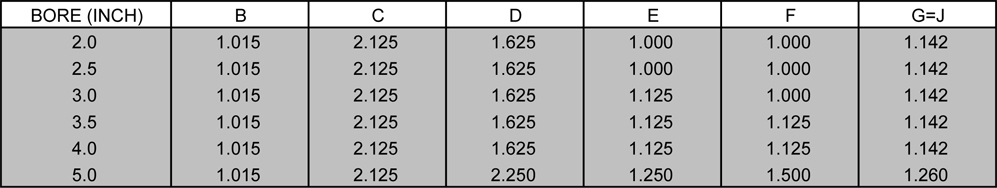

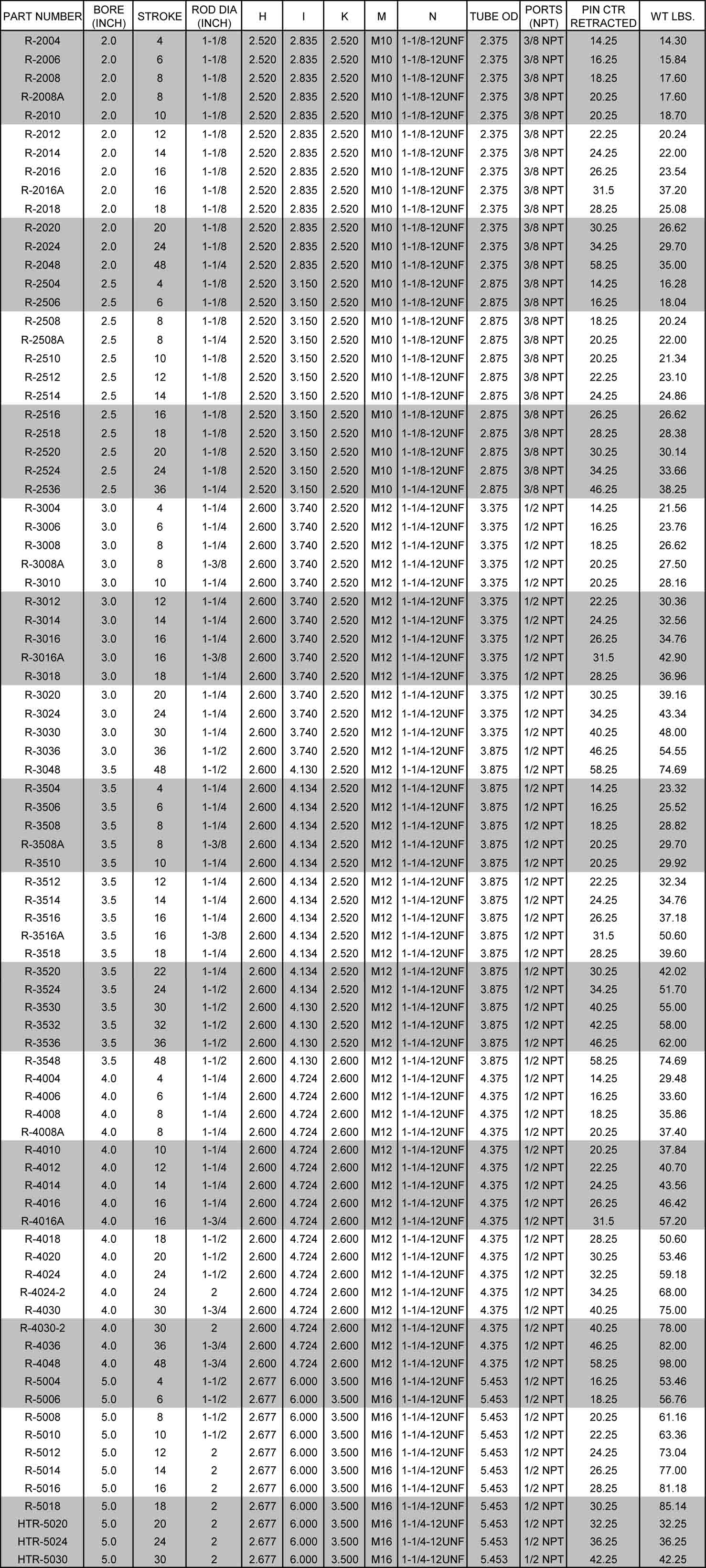

Tie Rod Hydraulic Cylinder Pressure Ratings: 2" - 4" Bore = 2500 PSI, 5" Bore = 2000 PSI
FEATURES: • Ductile iron piston. • Ductile iron gland, drilled oil passages. • Honed steel tube, precision finished for extended seal life. • High tensile, hard chrome plated rod. • Ductile iron end mounts, female clevises with pins and clips included. • Tube Seal: O-ring • Rod Seal: Deep polypak with B lip design; metal canned wiper. • 2-Piece 93A urethane piston seal, with a 70A nitrile energizer. • All Seals: Manufactured to US specifications. • NPT ports.
Seal kits for these cylinders are shown at the end of the section. "A" = Agricultural application w/ rod extension
|
